Additional Signature Block Data

When placing a signature or an initial into a document signature block, you also have the option of placing additional signature block data along with it. There are different options based on what type of document you are using, however. For PDF documents, these data can consist of one or more of the following and as many instances of each as is needed:

Data Options

• Email Address
• Title
• Organization
• Date/Time (with a variety of formats)
  • DateTime
  • ShortDate
  • LongDate
• Printed Name
• IP Address
• DocumentID
• TaskID
• Signing Location (7 format options)
• and even custom text of your choosing

task = new TaskInsertModel()
       {
           Type = TaskInsertModel.TypeEnum.Signature,
           SignatureBlock = new SignatureBlockModel()
           {
               Signature = new SignatureModel()
               {
                   PlaceSignatureOnAdditionalPdfSignaturePage = true
               },
               AdditionalPdfDataPlacements = new List<object>
               {
                   new SignatureBlockPdfDataPlacementModel()
                   {
                       Type = SignatureBlockPdfDataPlacementModel.TypeEnum.PrintedName
                   },
                   new SignatureBlockPdfDataPlacementModel()
                   {
                       Type = SignatureBlockPdfDataPlacementModel.TypeEnum.Title
                   },
                   new SignatureBlockPdfDataPlacementModel()
                   {
                       Type = SignatureBlockPdfDataPlacementModel.TypeEnum.Organization
                   },
                   new SignatureBlockPdfDataPlacementModel()
                   {
                       Type = SignatureBlockPdfDataPlacementModel.TypeEnum.ShortDate
                   },
                   new SignatureBlockPdfDataPlacementModel()
                   {
                       Type = SignatureBlockPdfDataPlacementModel.TypeEnum.CityAndStateProv
                   }
               }
           }
       }

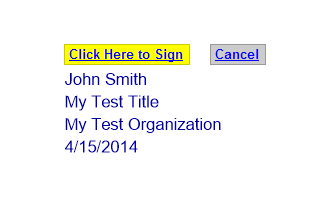

By running the code above, you should see an output in your document that looks something like the the image below. Keep in mind that you can place each of the additional signature block data items independently and even mix the placement methods as described in the Signature Block Placement Methods section.

CustomText Placeholders

When using the CustomText type, you can also use the following placeholders inside of the text value and also allows you to customize your date/time stamps. Splitting dates into different placements is permitted.

• {{TRANSACTION_DESCRIPTION}}
• {{TRANSACTION_ID}}
• {{DOCUMENT_ID}}
• {{TASK_ID}}
• {{PARTICIPANT_FULLNAME}}

Custom Dates

• “datetime:dd/MM/yyyy” yields ‟22/10/2009‟
• “datetime:yyyy-MMM-dd” yields "2009-Oct-22"
• “datetime:dd-MMM-yy hh:mm:ss” yields ‟22-Oct-09 16:24:45‟
• “datetime:dd-MMM-yy hh:mm:ss AMPM” yields ‟22-Oct-09 04:24:45 PM‟
• “datetime:MM/dd/yy hh:mm:ss AMPM” yields ‟01/01/09 04:01:01 PM‟
• “datetime:M/d/yy h:mm:ss AMPM” yields ‟1/1/09 4:01:01 PM‟
• “datetimetz:MM/d/yy h:mm:ss AMPM” yields ‟1/1/09 4:01:01 PM EDT‟ (the time zone will be the server's time zone)
• “datetimetzutc:M/d/yy h:mm:ss AMPM” yields ‟1/1/09 4:01:01 PM EDT (UTC-04:00)" (the time zone will be the server's time zone and the UTC offset will be appended)

Custom Partial Dates

• “datetime:MMMM” yields ‟January‟
• “datetime:MMM” yields ‟Jan‟
• “datetime:MM” yields ‟01‟
• “datetime:M” yields ‟1‟
• “datetime:dd” yields ‟01‟
• “datetime:d” yields ‟1‟
• “datetime:yyyy” yields ‟2020‟
• “datetime:yy” yields ‟20‟

Signing Location

In addition to displaying participant information like email, title, and organization, you can also display the geographic location where the document was signed in PDF signature blocks. This is particularly useful for compliance requirements, audit trails, and legal documentation that requires jurisdiction information.

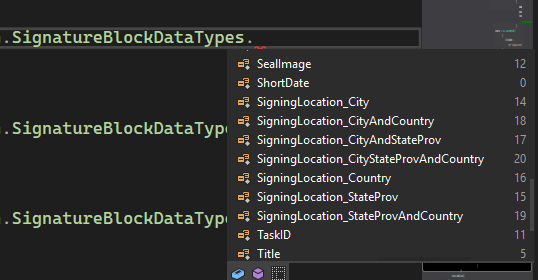

Available Location Display Options

The signing location can be displayed in seven different format combinations, allowing you to show only the geographic details relevant to your requirements. Each option is specified using the SigningLocationDisplayType enum:

Implementation Example

To display the signing location in your PDF signature block, add a SignatureBlockPdfDataPlacementModel with the Type set to SigningLocation and specify the desired format using the SigningLocationDisplayType property:

task = new TaskInsertModel()
       {
           Type = TaskInsertModel.TypeEnum.Signature,
           SignatureBlock = new SignatureBlockModel()
           {
               Signature = new SignatureModel()
               {
                   PlaceSignatureOnAdditionalPdfSignaturePage = true
               },
               AdditionalPdfDataPlacements = new List<object>
               {
                   new SignatureBlockPdfDataPlacementModel()
                   {
                       Type = SignatureBlockPdfDataPlacementModel.TypeEnum.PrintedName
                       //you can include placement properties here as well
                   },
                   new SignatureBlockPdfDataPlacementModel()
                   {
                       Type = SignatureBlockPdfDataPlacementModel.TypeEnum.ShortDate
                       //you can include placement properties here as well
                   },
                   new SignatureBlockPdfDataPlacementModel()
                   {
                       Type = SignatureBlockPdfDataPlacementModel.TypeEnum.CityStateProvAndCountry
                       //you can include placement properties here as well
                   }
               }
           }
       }

The code above, when combined with collected signer information, will display the complete signing location (City, State/Province, and Country) in the PDF signature block as shown below:

Best Practices

Collect Required Data First

Ensure you've enabled the appropriate QueryFor* properties to collect the location data you want to display:

participant.QueryForCity = true;
participant.QueryForStateProv = true;
participant.QueryForCountry = true;

Choose Appropriate Format

Select the location display format that matches your compliance and business requirements:

• Use CityStateProvAndCountry for comprehensive audit trails and full documentation
• Use CityAndStateProv for domestic US/Canada transactions where country is implicit
• Use Country only for high-level international tracking without detailed location

Position in Signature Block

The signing location data placement can be positioned anywhere within your signature block alongside other data elements like printed name, title, organization, and date. Use the standard PDF signature block placement methods (page coordinates, search text, etc.) to control the exact positioning.

Consider Privacy Requirements

Be mindful of privacy regulations when collecting and displaying geographic information. Only collect and display location data that's necessary for your business or compliance needs.

Related Topics

• Collecting Signer Information - Learn how to collect the location data required for signing location display
• Signature Placement for PDF Documents - Control where signature blocks appear in your PDFs
• Notification Placeholders - Use location data in notification templates
